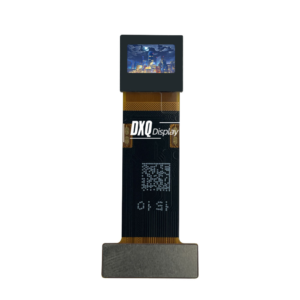

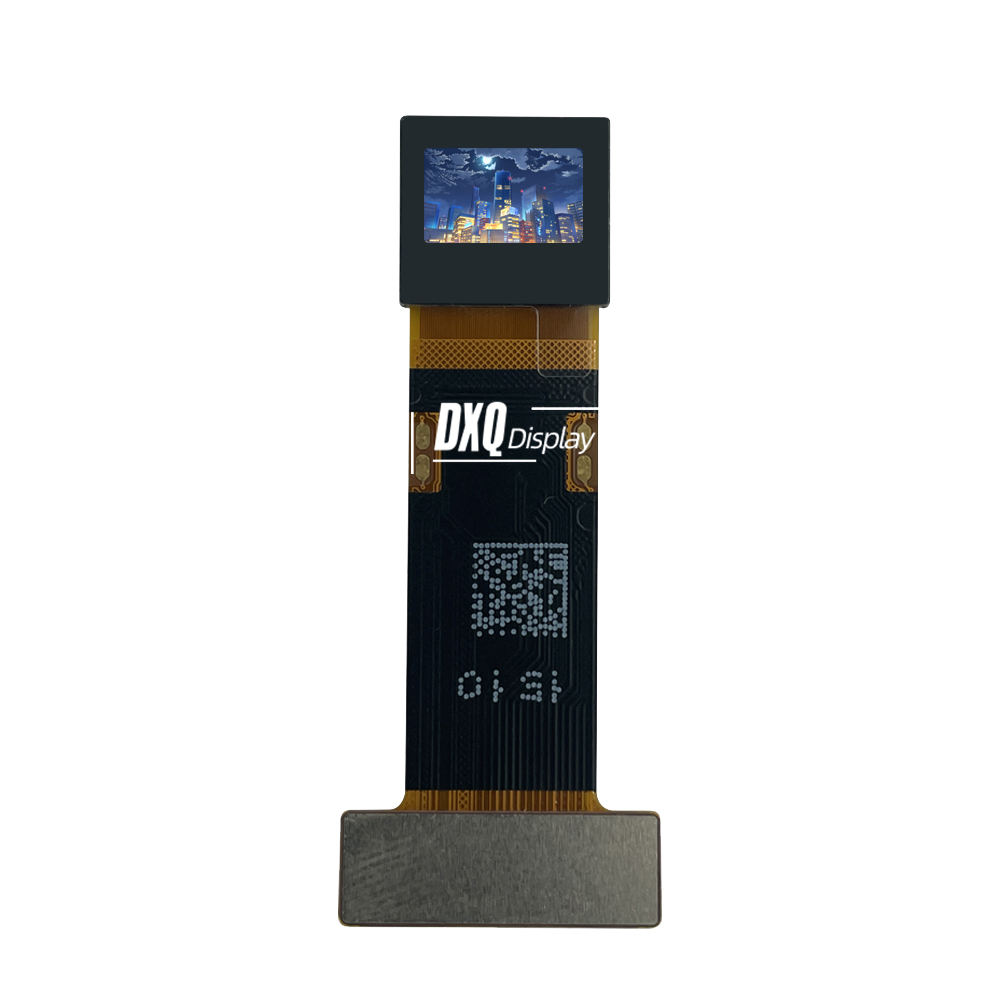

B039FH8A0 is a 0.39 inch（1 cm) diagonal, FHD resolution(1920 x1080), active matrix color OLED (Organic Light
Emitting Display)panel module based on single crystal silicon backplane . The pixel circuits and driving IC are
integrated on the silicon backplane to get the compact size and very low power consumption.

Key Features

• 0.39-inch Full HD AMOLED display (1920 × 1080)
• High brightness of 500 cd/m²
• Ultra-high contrast ratio of 1000:1
• MIPI only or MIPI(data)+I2C(CMD) interface with GC9107 driver IC
•  60-pin connector
• Wide operating temperature: -20°C to 70°C
• Storage Temperature：-30℃~80℃
• Exclusive private-mold design with competitive pricing
• Stable long-term supply and customization support
