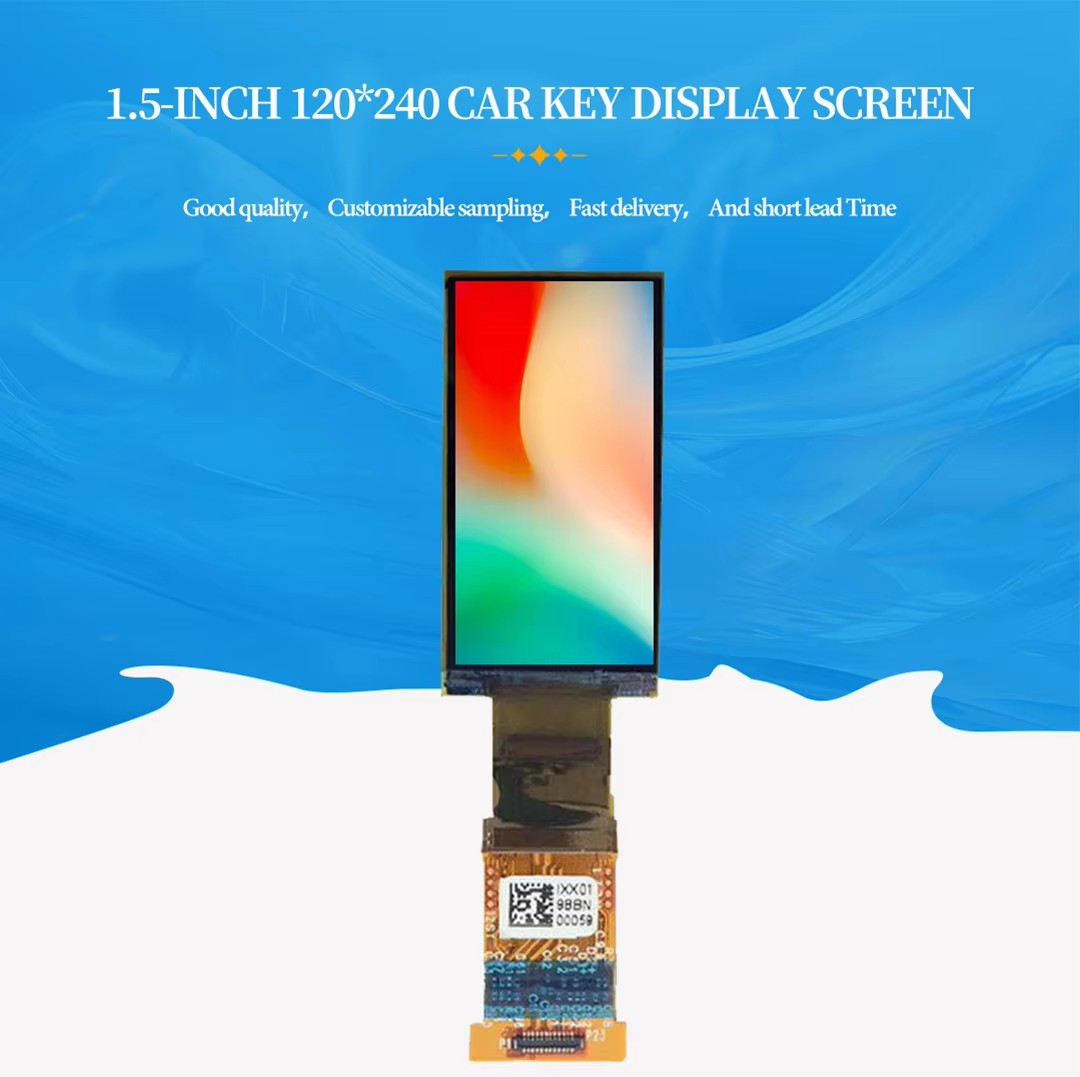

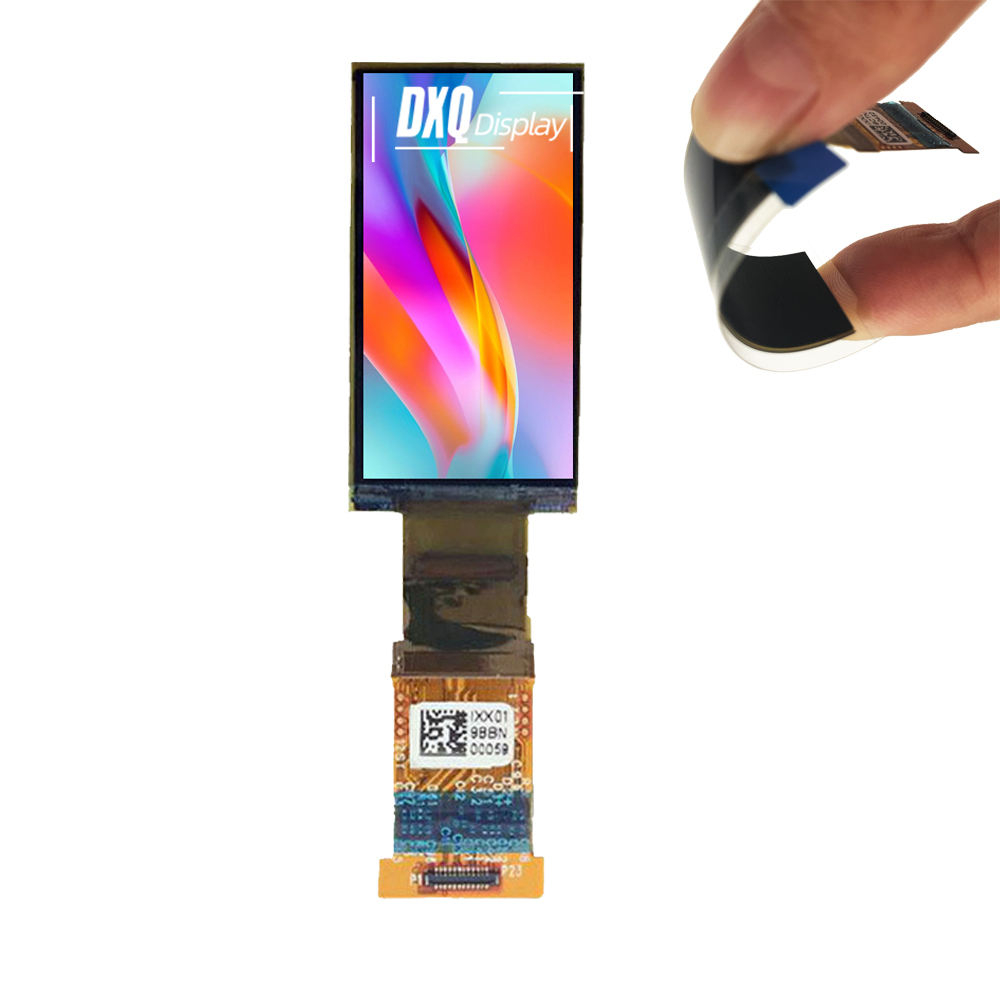

1.5-inch flexible color AMOLED display，120×40 (vertical long strip pixel arrangement, suitable for various narrow and long display windows),organic self-emissive OLED material, substrate with bendable characteristics,high color gamut coverage, ultra-high contrast performance.
I. Core Display Advantages
1. Ultra-high contrast, clear image layers
Pixels are independently self-em, and black pixels are completely turned off without emitting light, eliminating backlight leakage issues. The black field is pure and deep, with strong brightness contrast. Icons, text, and patterns have extremely high recognizability, providing an excellent viewing experience in low-light environments.
2. High color gamut rendering, bright and accurate colors
Native wide color gamut characteristics that color images are full and transparent, without whitening or fading issues. Color icons, status indicator lights, and color UI patterns are displayed with high fidelity.
3. Ultra-fast without ghosting
OLED millisecond-level pixel response speed ensures no afterimages or stuttering during image switching and dynamic icon scrolling, making it suitable for dynamic animations and switching interfaces.
4. Ultra-low power consumption characteristics
Pixels go into sleep mode to reduce power consumption during dark interfaces and static displays. Compared to LCD, power consumption is significantly, making it highly suitable for battery-powered portable devices.
II. Flexible and Bendable Structure Highlights

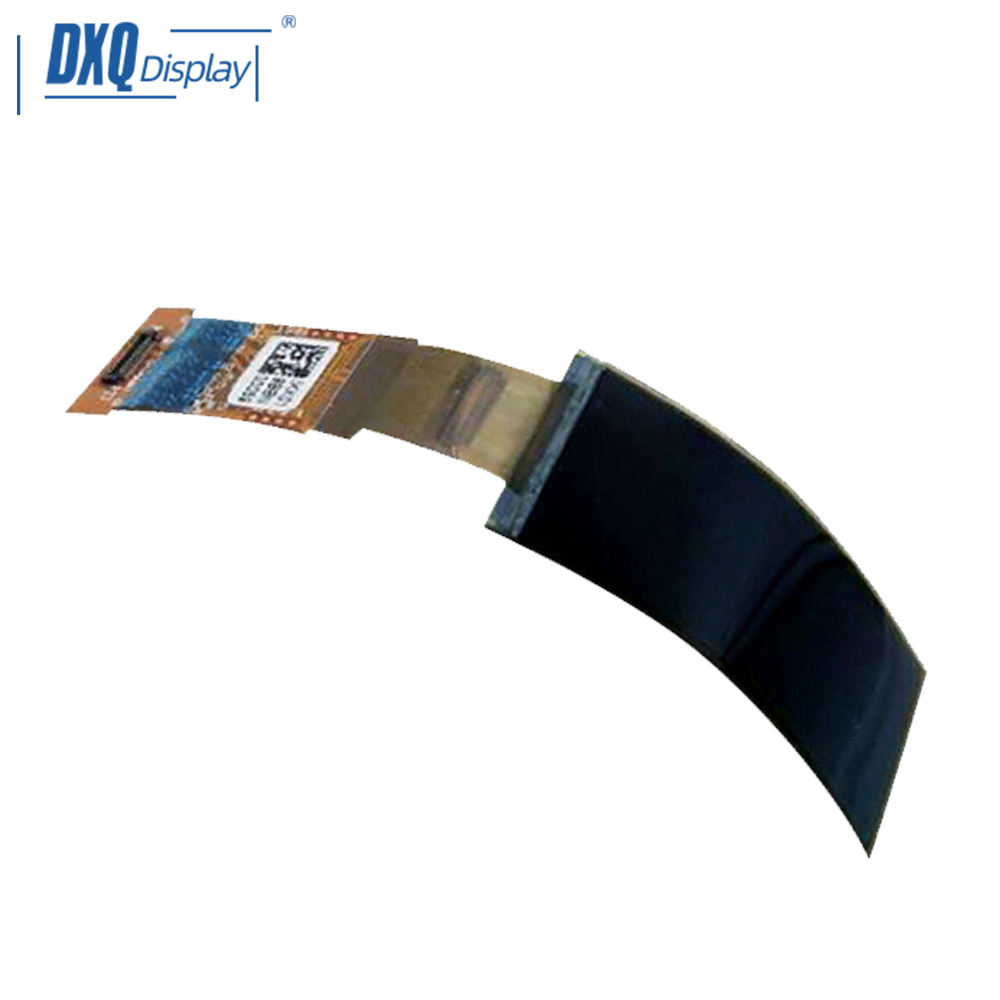

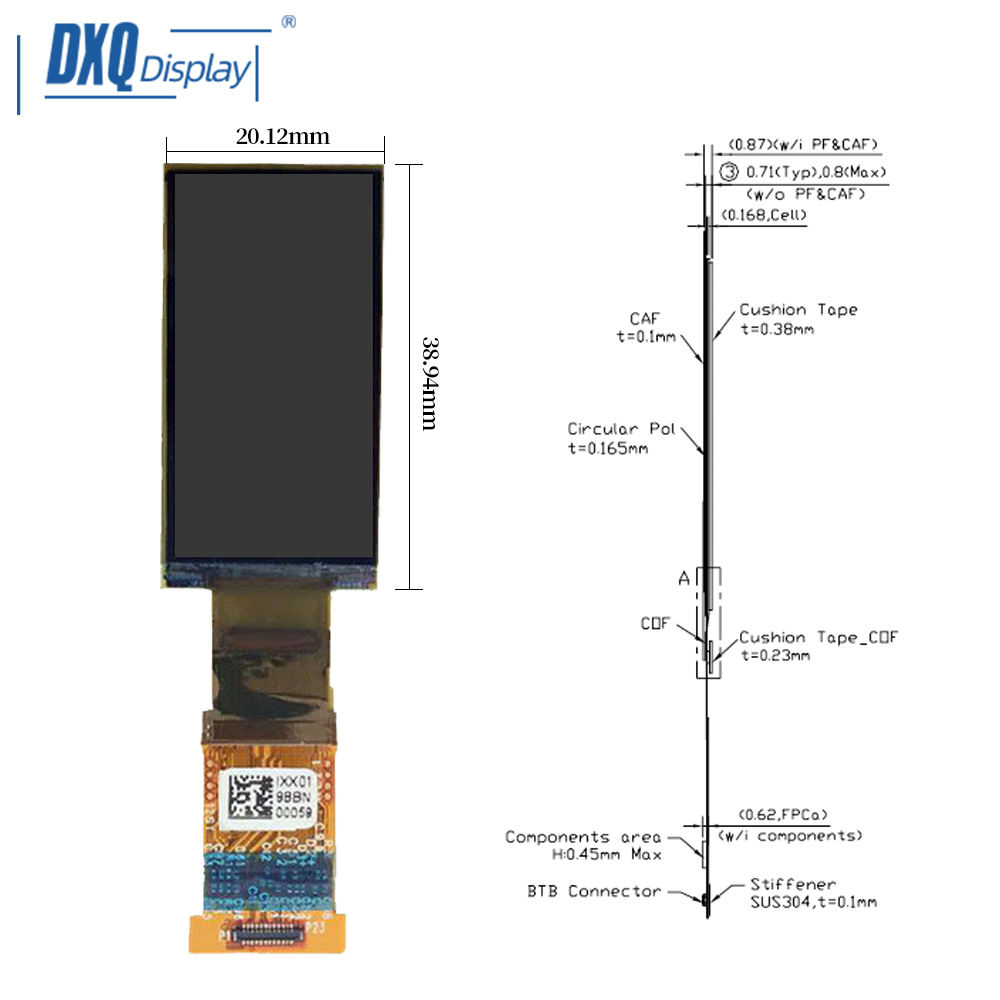

It uses a flexible PI substrate, and the screen itself supports slight and curved fitting installation, unconstrained by flat enclosures. The overall module is thin, light, and compact, with a thickness far below that of rigid displays. It can adapt to irregular, curved inner walls, and curved assembly of wearable devices, providing greater freedom for product structural design and easy integration even in cramped spaces.
III. Size and Layout Advantages (120*240 Vertical Long Strip)
The vertical long strip resolution layout is suitable for device status bars, battery displays, parameter bars, status indicator lights, and small information. It perfectly matches narrow and long installation positions, offering high space utilization.
IV. Applicable Scenarios
Smart wearable accessories, portable testing instruments, Bluetooth earphone charging cases, screens for handheld small devices, smart home control panels, portable medical devices, industrial small status indicator screens, and various niche customized digital products
Key Features
- 1.5” Flexible AMOLED Panel
- 120×RGBX240 resolution
- Ultra-high contrast ratio of 10000:1
- Pixel density 180PPI
- Driving Frequency: support 60Hz
- Brightness of 350 cd/m²

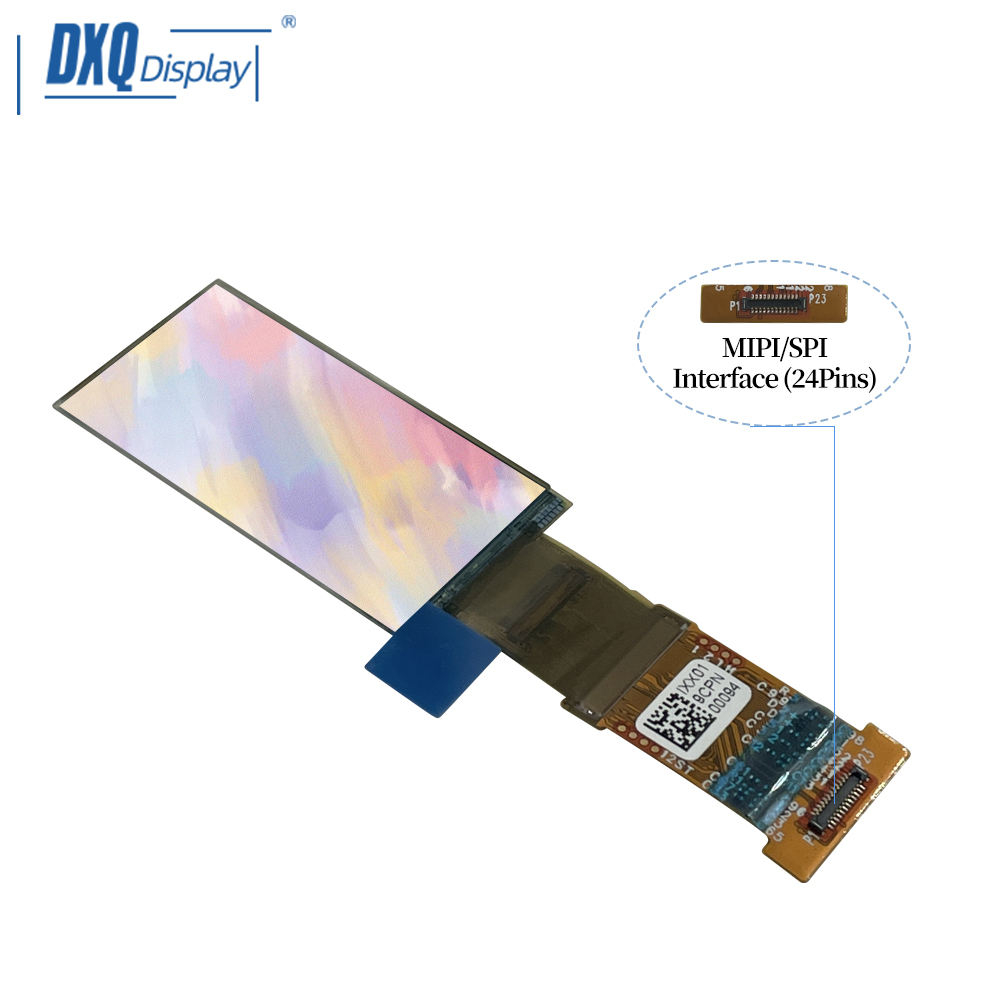

- SPI/MIPI interface
- Viewing angle 80/80/80/80

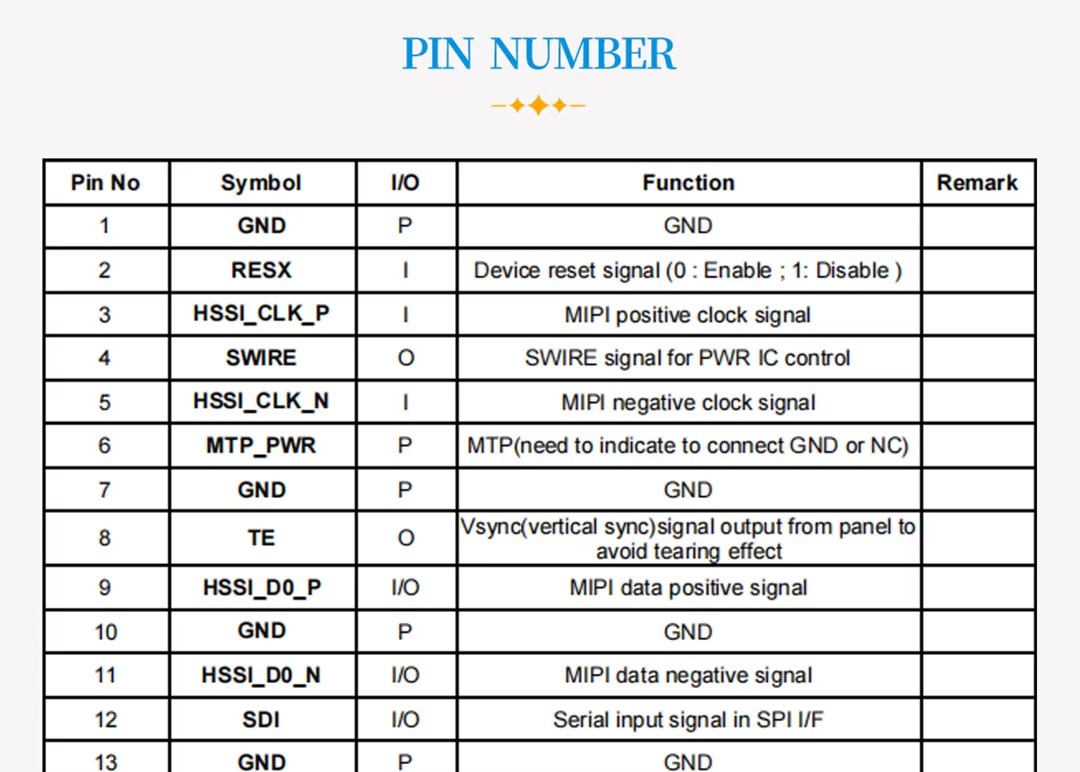

- Slim profile with 24-pin connector
