1080×1240 3.92 Inch Oncell Touch AMOLED High Definition High Brightness IPS 3.92 Inch Digital Electronic Smart Home

Display Size: 3.92 inches
Display Type: AMOLED Display
Resolution: 1080 × 1240
Model: DXQ3D9202
Interface: MIPI
Driver IC: VTDR6110

Touch IC: CST3640
Brightness: 520 cd/m²
Contrast Ratio: 100,000:1
Viewing Angle: Full Viewing Angle (IPS-Level)
Touch Panel: On-Cell Capacitive Touch
Connector: 45 Pins

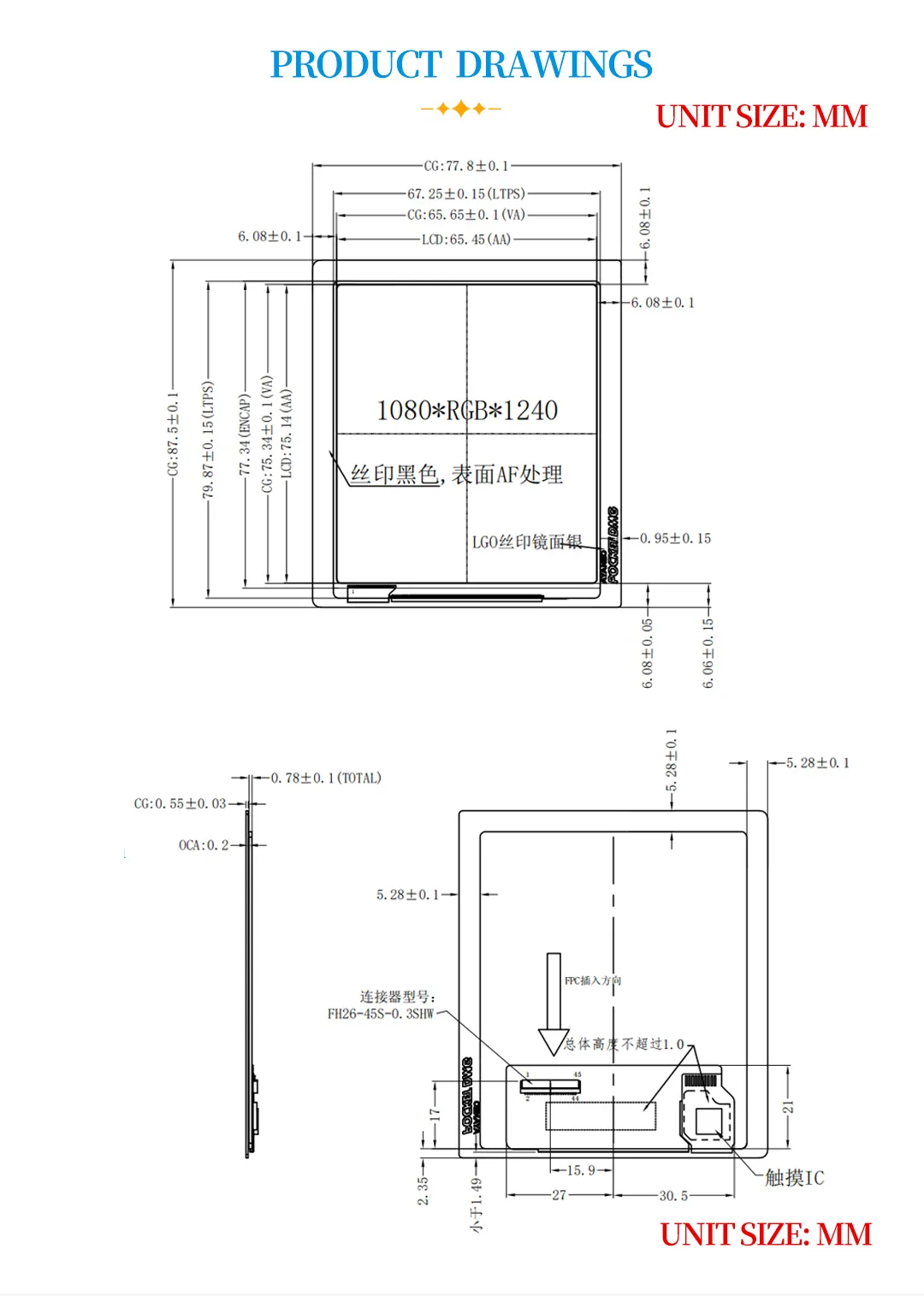

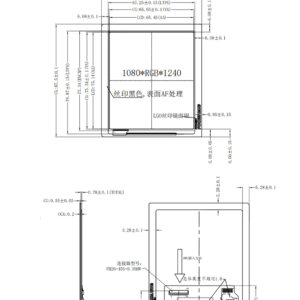

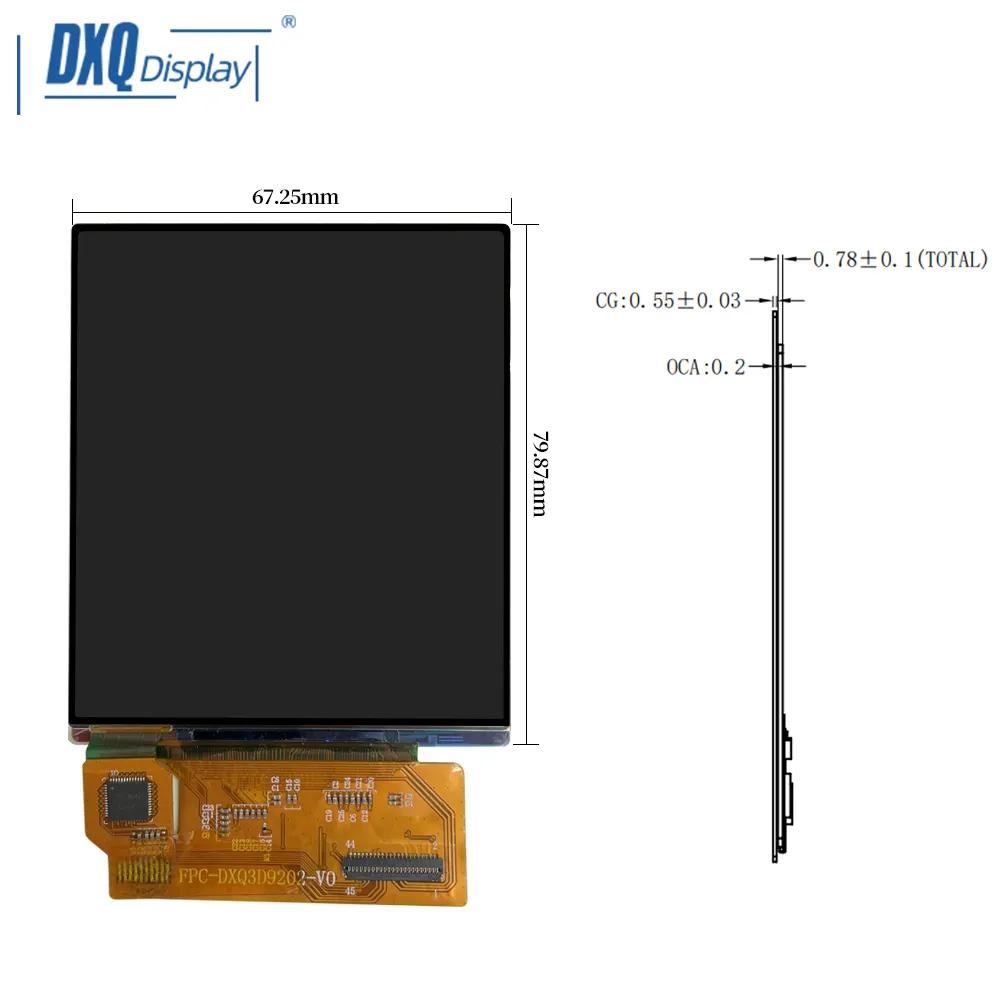

Outline Dimensions (OD): 67.25×79.87×0.78mm
Minimum Order Quantity (MOQ): 2 pcs
Sample Lead Time: 7 Days
Mass Production Lead Time: 25–30 Days

Categories: AMOLED Display, Medium Size AMOLED Display (4"–7")

1080×1240 3.92 Inch Oncell Touch AMOLED High Definition High Brightness IPS 3.92 Inch Digital Electronic Smart Home

Key Features

3.92-inch AMOLED display (1080*1240)
Integrated On-Cell capacitive touch
High brightness of 520 cd/m²
Ultra-high contrast ratio of 100000:1
MIPI interface with VTDR6110 driver IC
FT3519 touch controller
Slim profile with 45-pin connector
Wide operating temperature: -20°C to 70°C
Exclusive private-mold design with competitive pricing
Stable long-term supply and customization support
