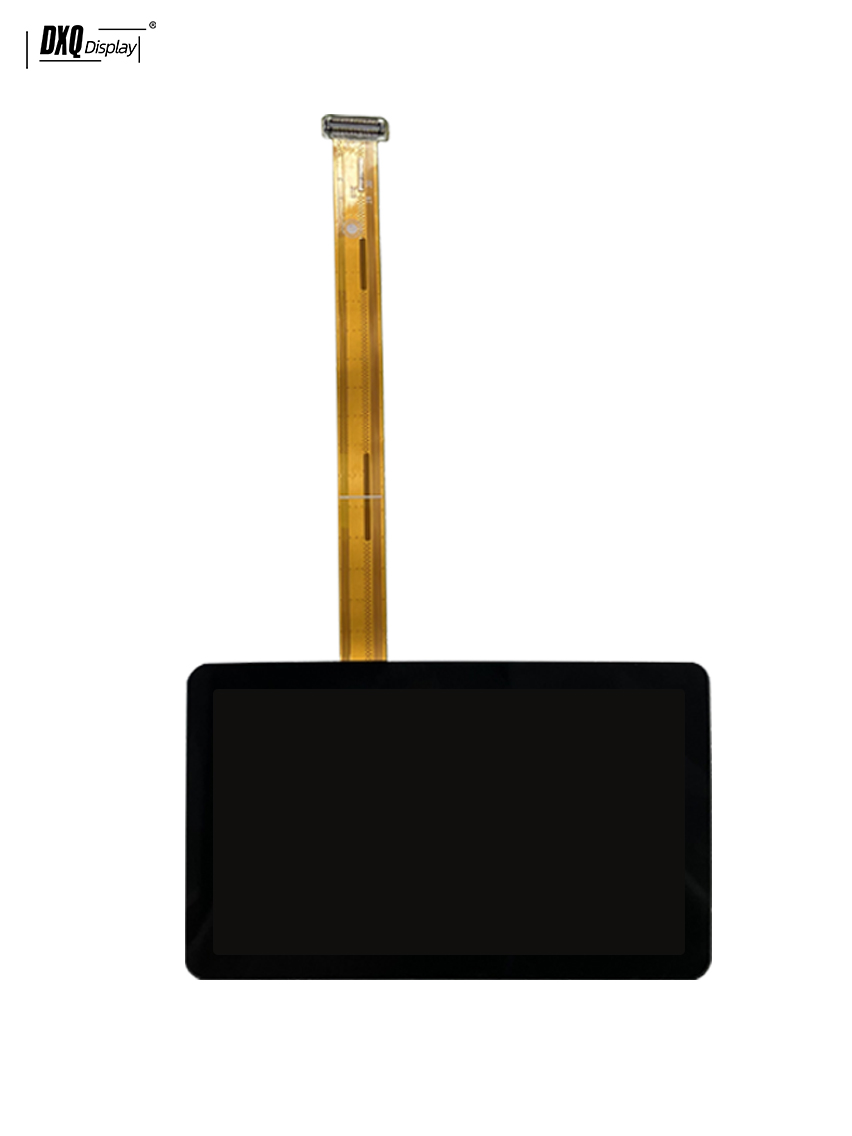

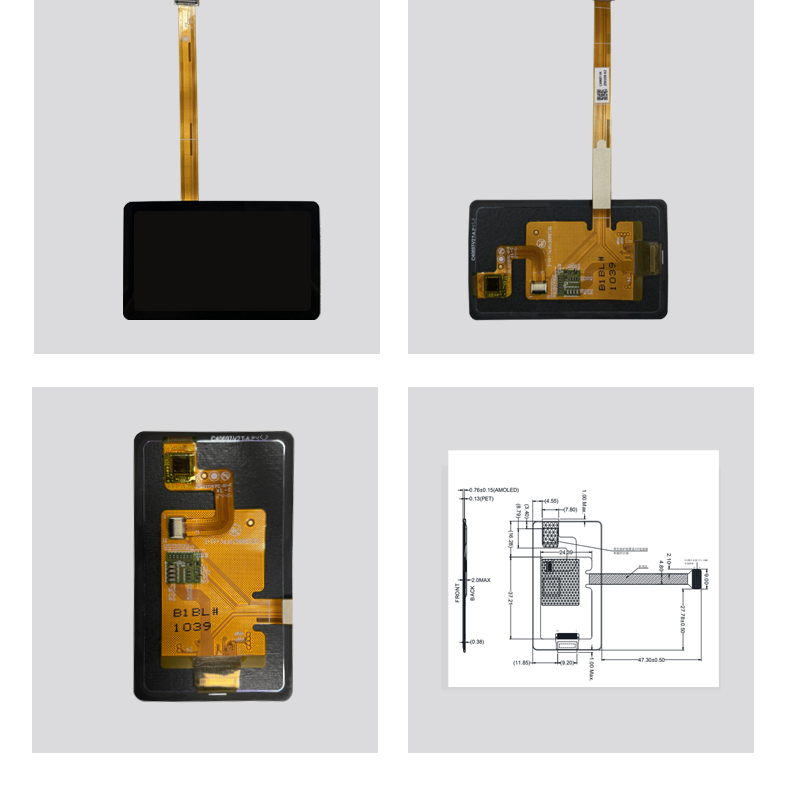

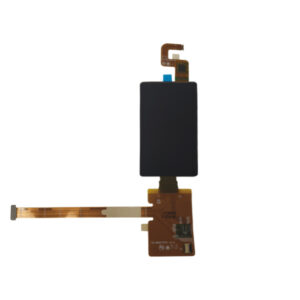

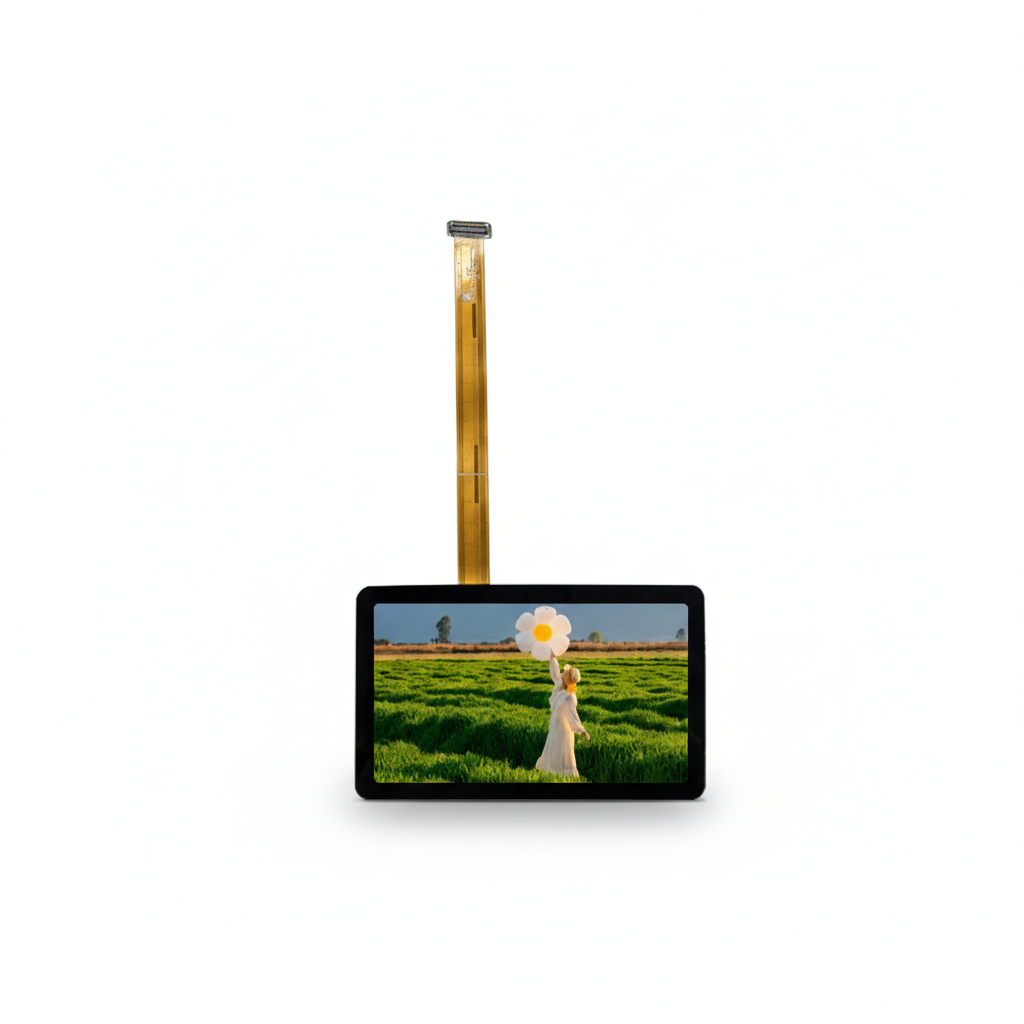

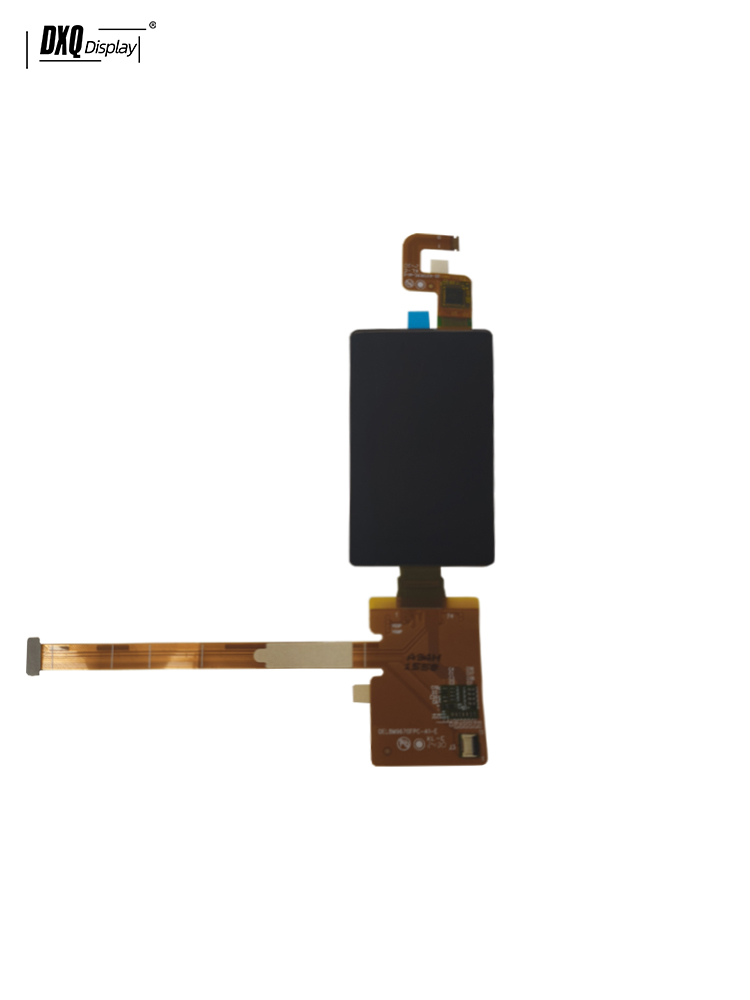

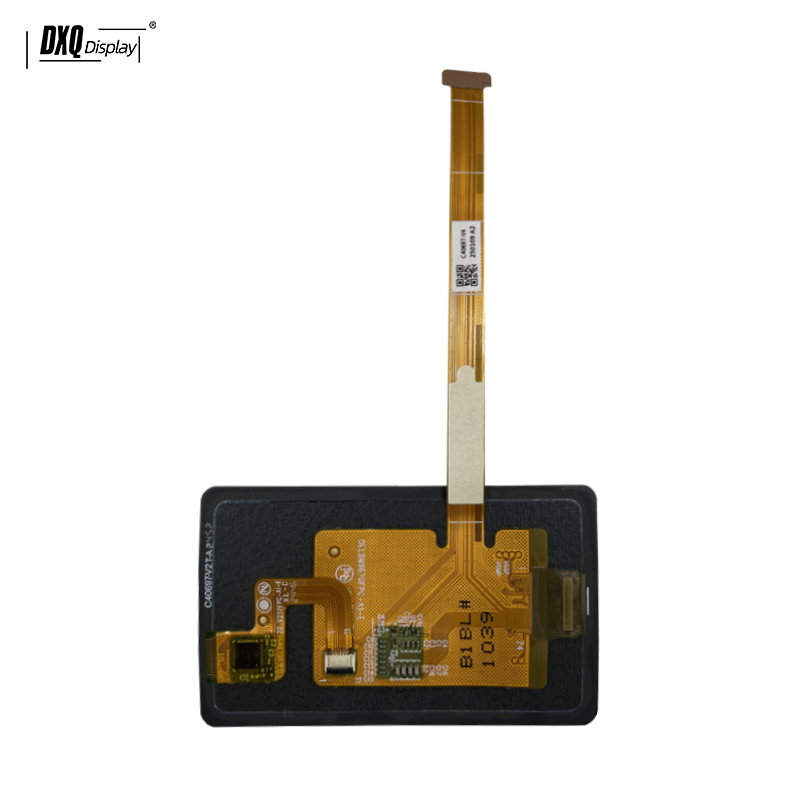

2.5 Inch AMOLED Display MIPI Interface 400*721 High Brightness 800nits 30 Pin for Cameras Photography Equipment and Door Locks

Display Size: 2.5 inches
Display Type: AMOLED Display
Resolution: 400× 712
Model: DXQ025EGOIN002-C000
Interface: MIPI
Driver IC: RM690C0
Touch IC: ZT2628
Brightness: 800 cd/m²
Contrast Ratio: 100,000:1
Viewing Angle: Full Viewing Angle (IPS-Level)
Touch Panel: On-Cell Capacitive Touch

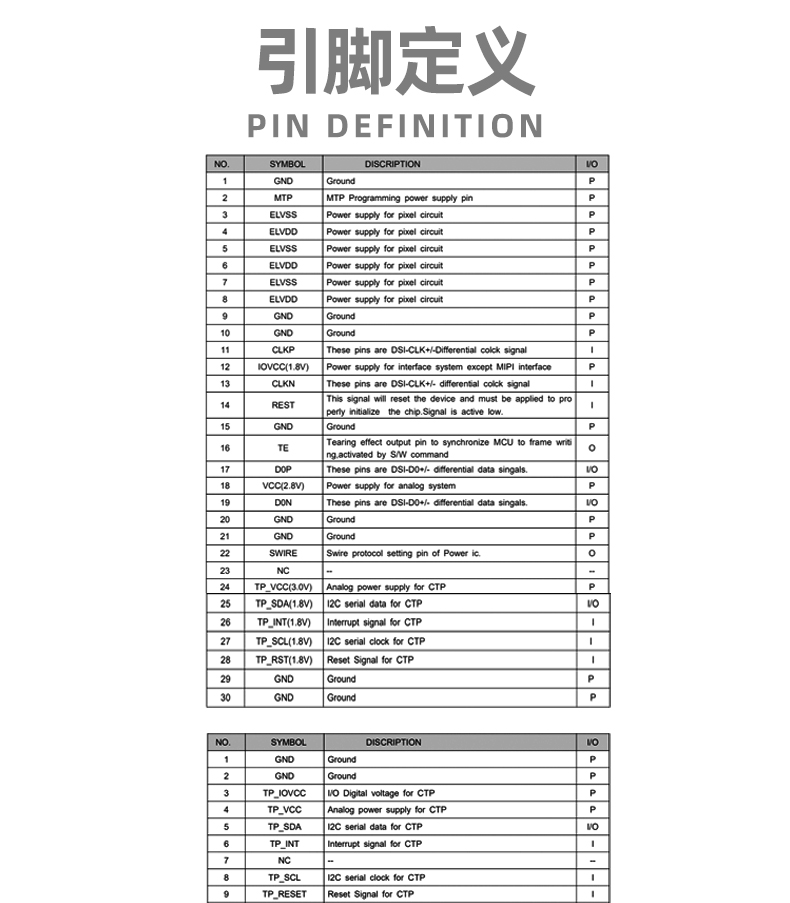

Connector: 30 Pins

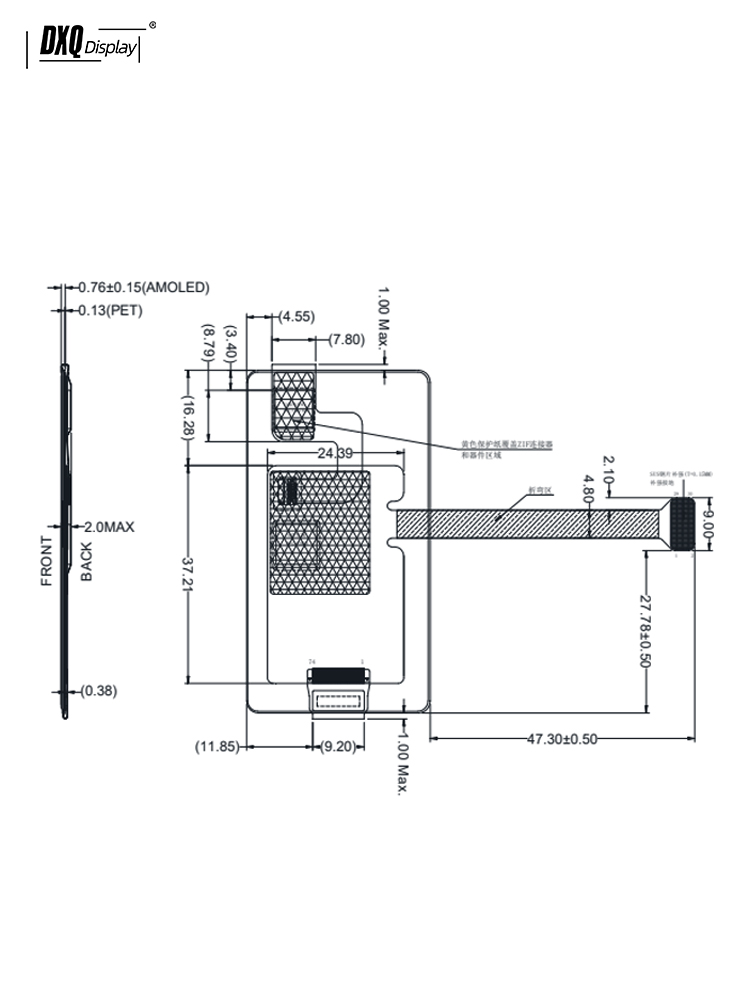

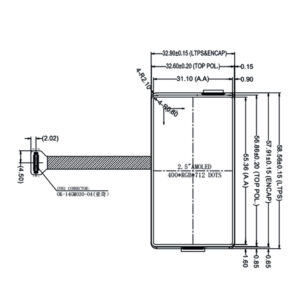

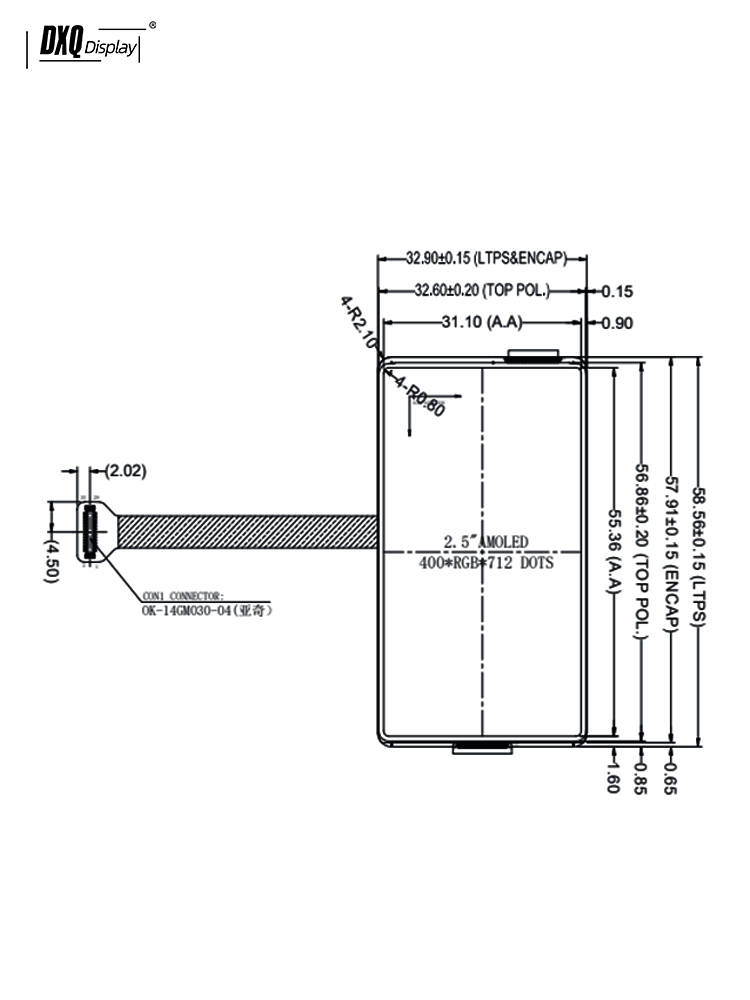

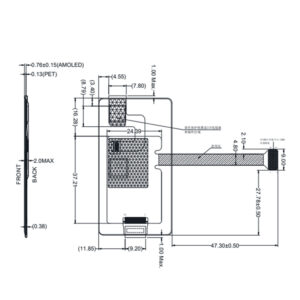

Outline Dimensions (OD): 32.9× 58.56  mm
Active Area (AA): 31.1 (H) × 55.36 (V) mm
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Applications: Cameras Photography Equipment and Door Locks
Minimum Order Quantity (MOQ): 2 pcs
Sample Lead Time: 7 Days
Mass Production Lead Time: 25–30 Days

2.5 Inch AMOLED Display MIPI Interface 400*721 High Brightness 800nits 30 Pin for Cameras Photography Equipment and Door Locks

Key Features

  • 2.5-inch Full HD AMOLED display (400 × 712)
  • High brightness of 800 cd/m²
  • Ultra-high contrast ratio of 100000:1
  • MIPI interface with RM690C0 driver IC
  • ZT2628 touch controller
  • Slim profile with 30-pin
  • Wide operating temperature: -20°C to 70°C
  • Storage temperature :-30°C~+80°C
  • Exclusive private-mold design with competitive pricing
  • Stable long-term supply and customization support
