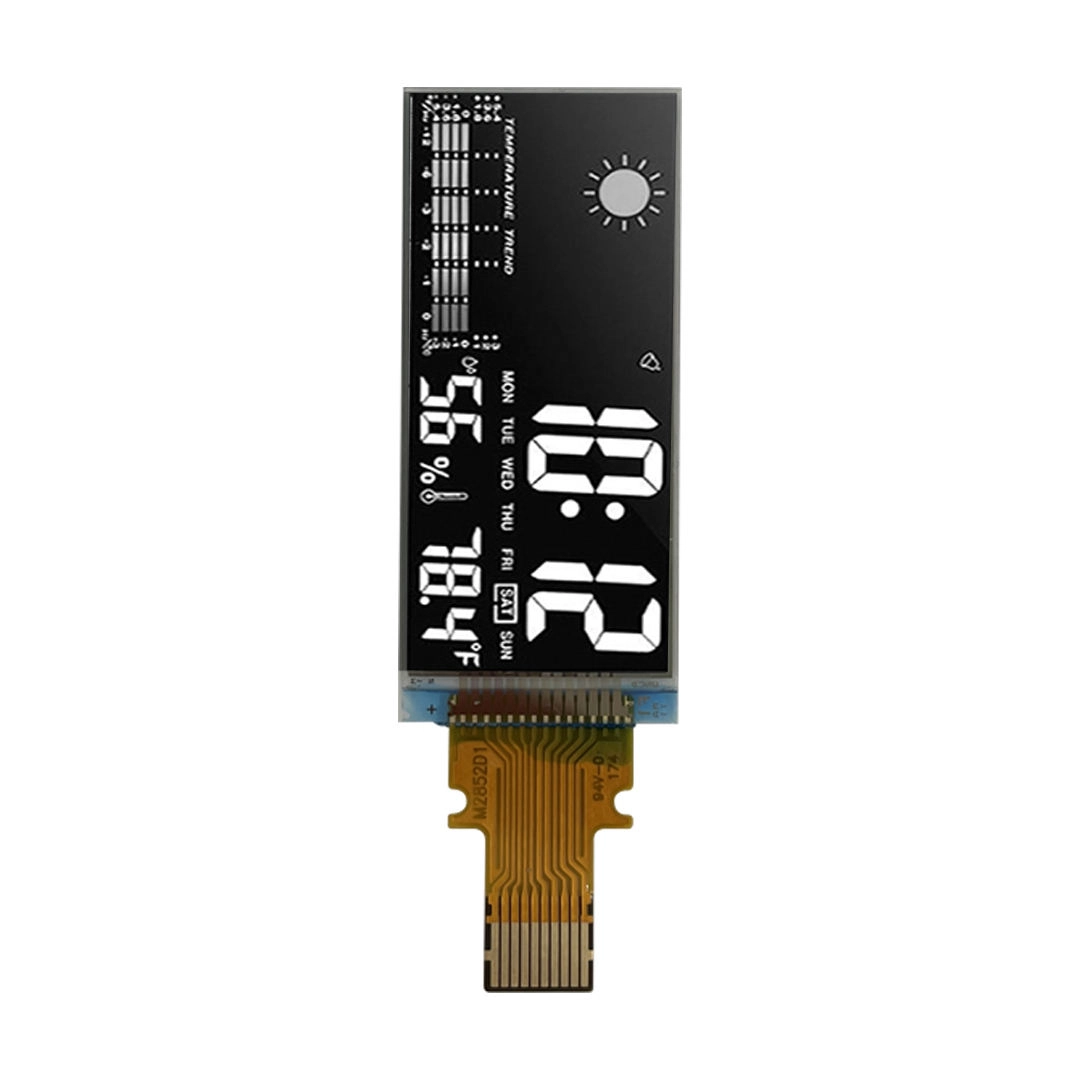

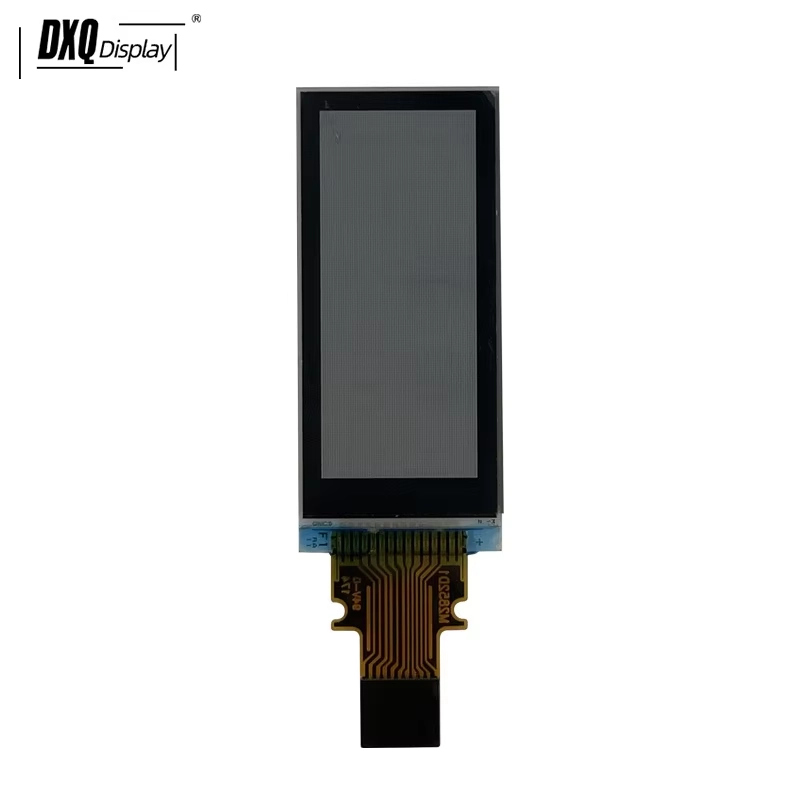

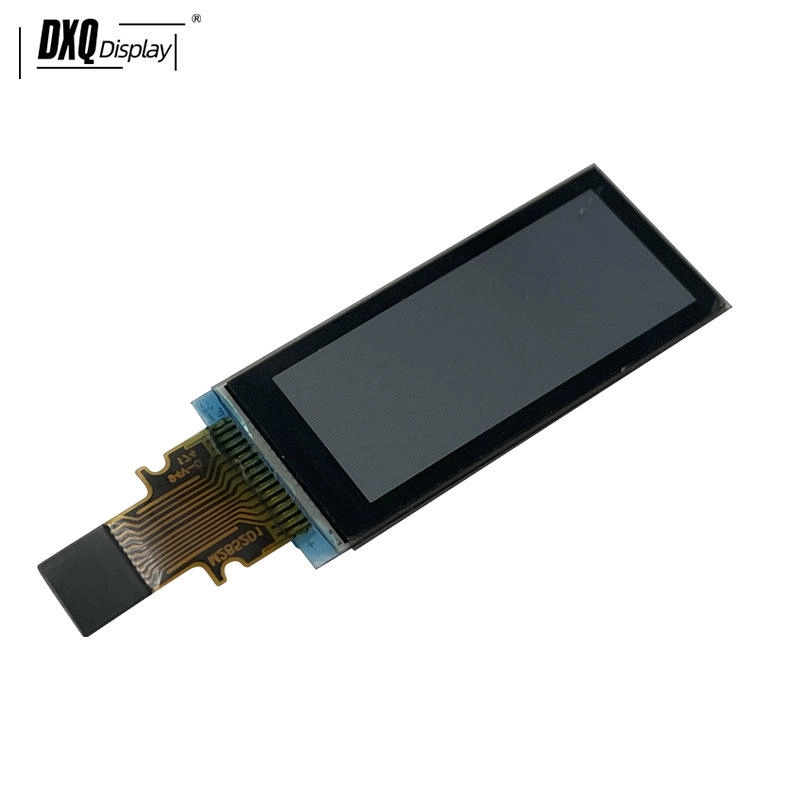

Low Power 1.08 Inch 160*68 LS011B7DH03 Semi Transparent Semi Reflective LCD Display Constant Light 1.08 Inch MONO Display Screen

Display Size:1.08Inch semi Transparent and mono LCD
Interface:SPI

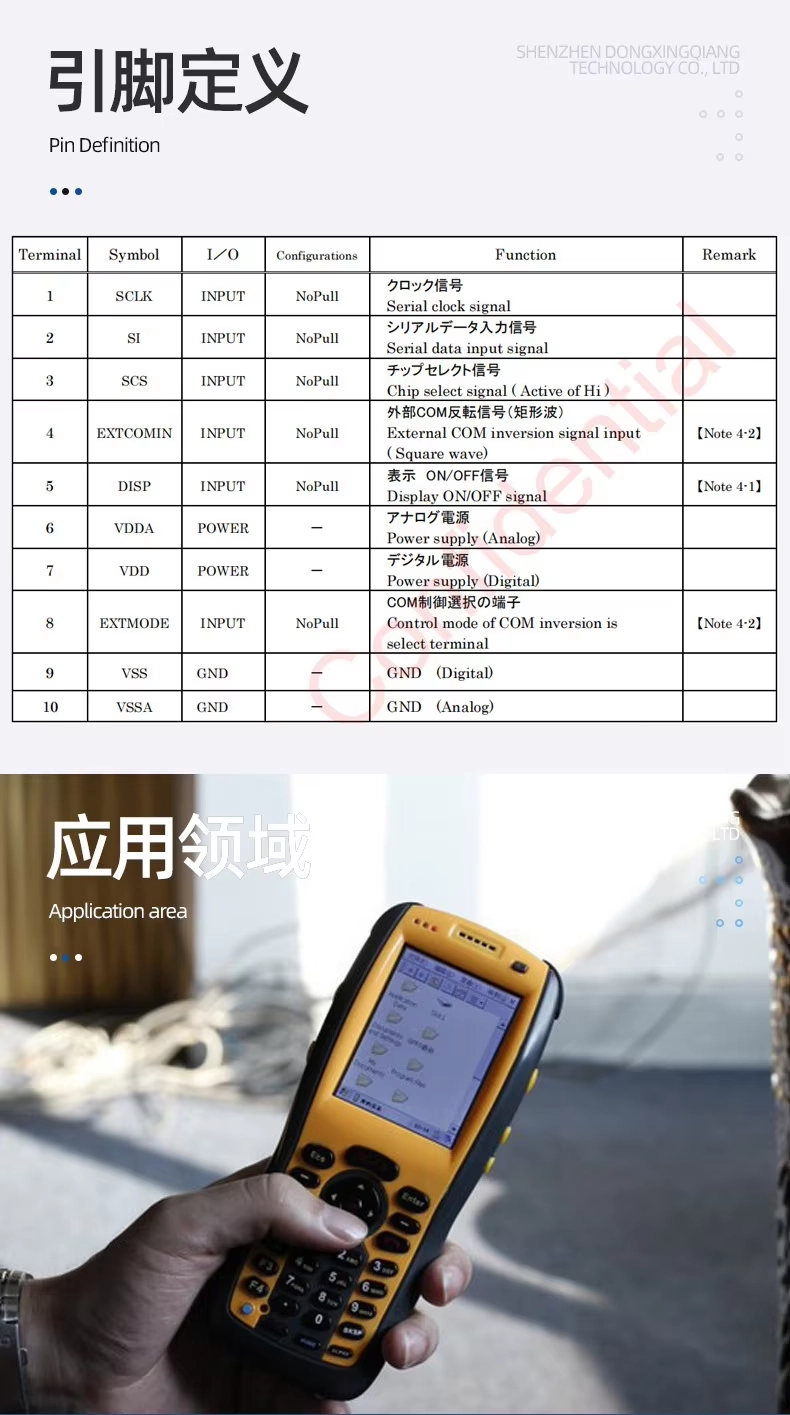

Pin:10pins
Resolution:160*68
Viewing Angle:Full
Contrast Ratio:20:1

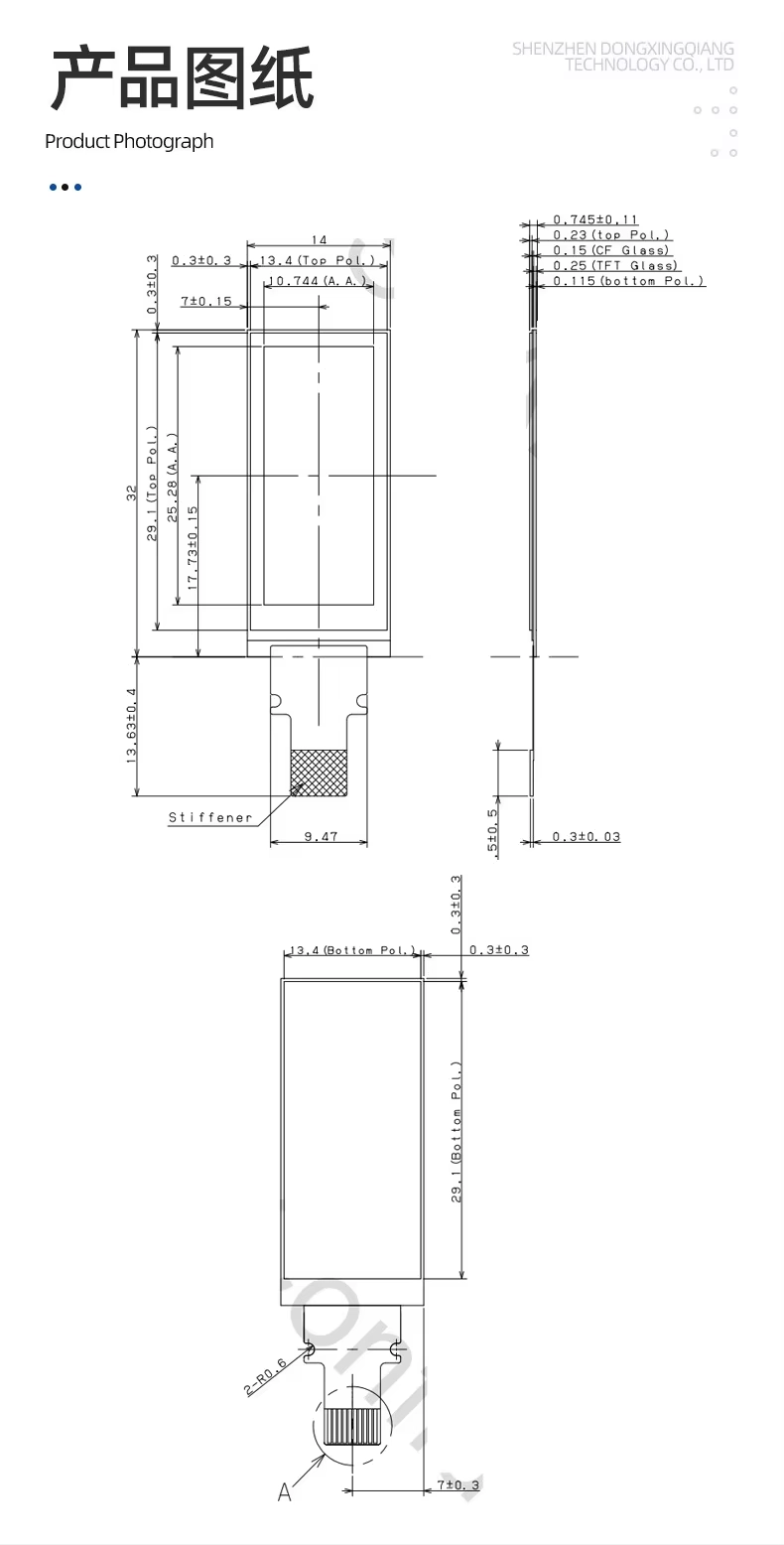

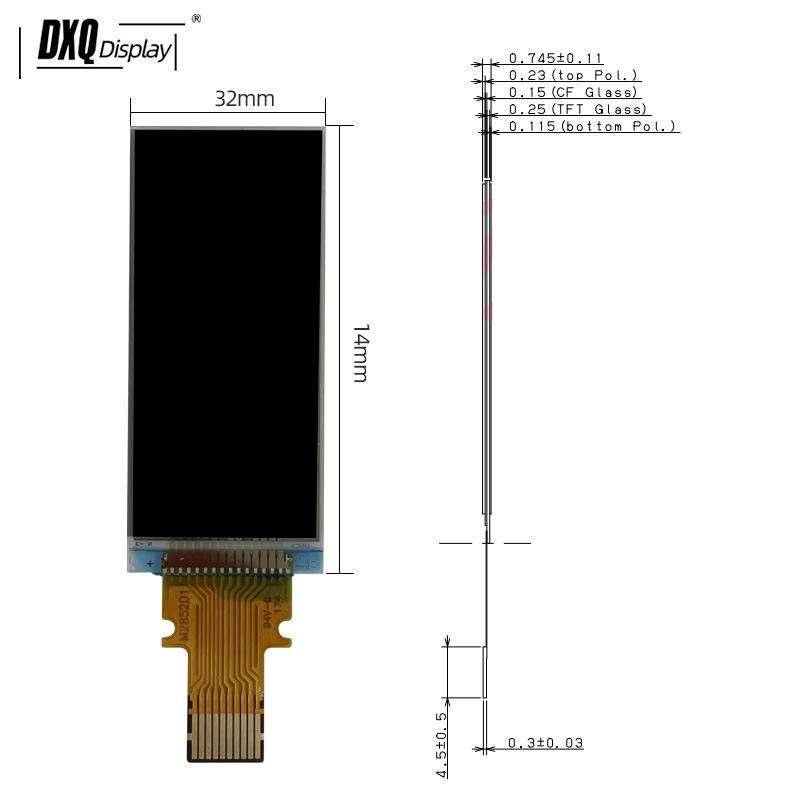

Outline Dimension:32*14*0.86mm
Active Area:25.28*10.744

This 1.08-inch MONO LCD display, model LS011B7DH03, combines low power consumption with high visibility in constant light. Featuring a 160*68 resolution and semi-transparent, semi-reflective technology, it delivers clear monochrome graphics indoors and outdoors without a backlight.

The reflective mode enhances readability under sunlight, while the transmissive mode works in dim environments with minimal power draw. Ideal for portable devices, e-readers, and industrial panels, this compact screen balances energy efficiency and persistent visibility. Its lightweight design and reliable performance make it a smart choice for battery-powered applications where long runtime and all-weather readability matter most.
