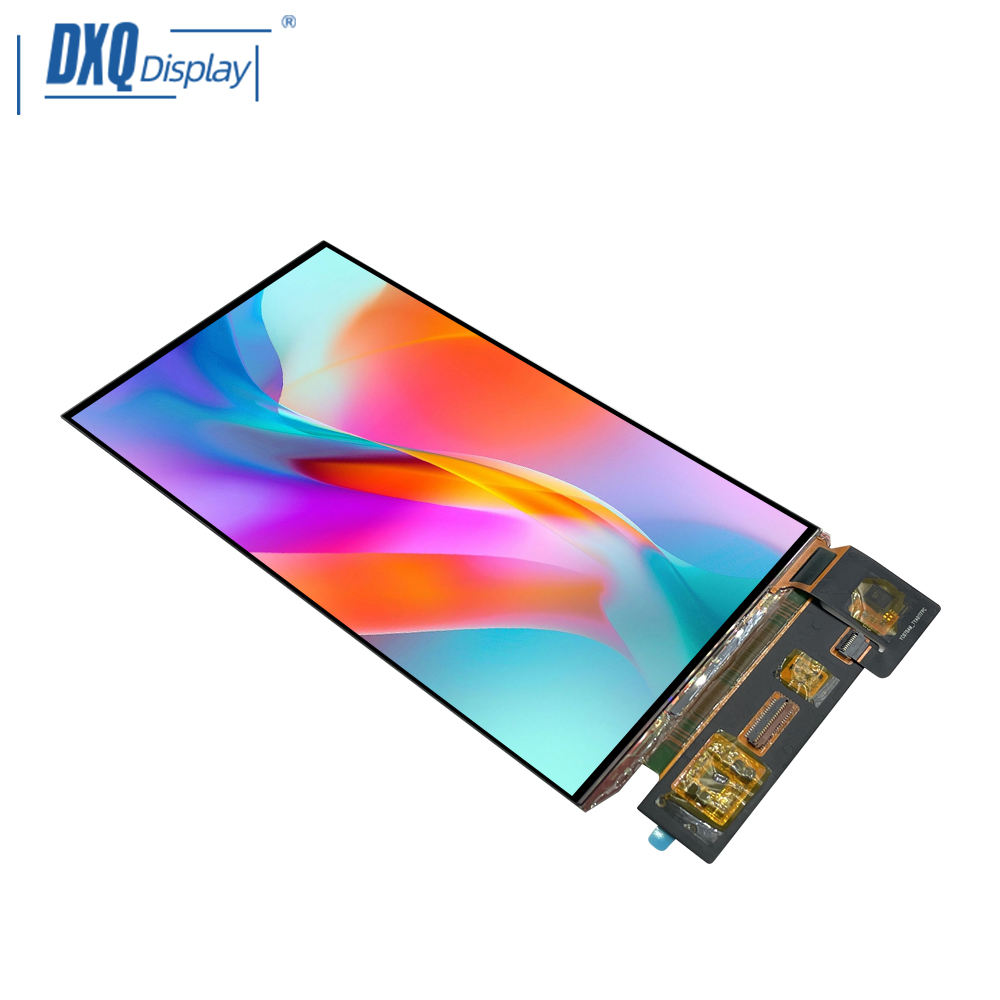

A 7 Inch AMOLED Display combines high-resolution visuals, rich contrast, and responsive touch interaction. For device manufacturers, the right AMOLED display module must also match interface requirements, installation dimensions, and operating conditions. Therefore, buyers should evaluate both display performance and integration costs. The DXQ7D0023 offers a Full HD resolution, integrated capacitive touch, and a compact module design. These features make it worth considering for handheld gaming, portable monitors, and imaging equipment.
How Do You Match Display Quality to Your Application?
Different devices require different visual performance. Gaming equipment benefits from smooth motion, while imaging devices need detailed picture reproduction. Meanwhile, portable equipment often balances screen quality with limited installation space.
Evaluate Resolution, Contrast, and Refresh Rate

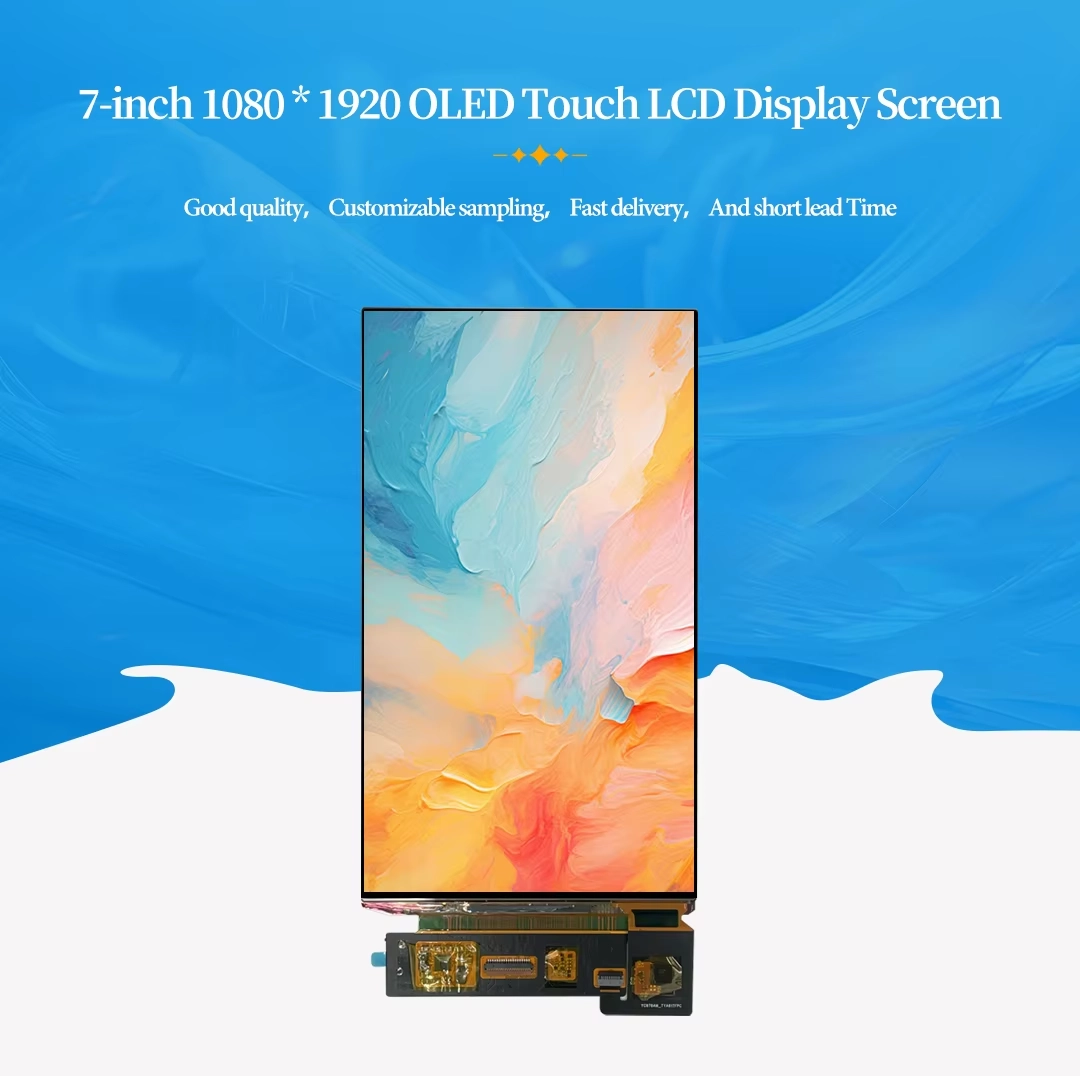

The DXQ7D0023 provides a resolution of 1080 by 1920 pixels. Consequently, the seven-inch panel can present detailed graphics and interface elements. Its contrast ratio reaches 100,000 to one, supporting deep blacks and distinct visual details.
The module also supports a refresh rate of up to 144 hertz. This option can benefit compatible gaming applications and motion-rich interfaces. However, the host system must support the selected refresh rate.
For imaging equipment, buyers should also evaluate color accuracy and calibration requirements. Ask the supplier for measured color-gamut data before finalizing specifications.
Explore our AMOLED display product category to compare modules for different device designs.
What Brightness Suits Portable and Professional Devices?
Portable monitors and handheld devices often move between different lighting conditions. Therefore, brightness deserves careful consideration during component selection.
Check Brightness and Viewing Conditions
The DXQ7D0023 offers a rated brightness of 800 candelas per square meter. This level can support visibility in many bright indoor environments. However, direct sunlight performance also depends on reflections, cover glass, and optical design.
The module specifies a full viewing angle with IPS-level viewing characteristics. This helps designers assess visibility across different viewing positions. Nevertheless, buyers should request the supplier’s measurement criteria and viewing-angle data.
For outdoor equipment, evaluate the complete display assembly under representative lighting. An anti-reflective surface or optical bonding may also suit certain designs. Confirm availability and pricing before ordering.
Which Touch Technology and Interface Fit Your Hardware?
Display integration involves more than matching resolution. The touch controller, display driver, connector, and host interface must work together. Therefore, confirm these details before committing to production quantities.
Verify On-Cell Touch and MIPI Compatibility

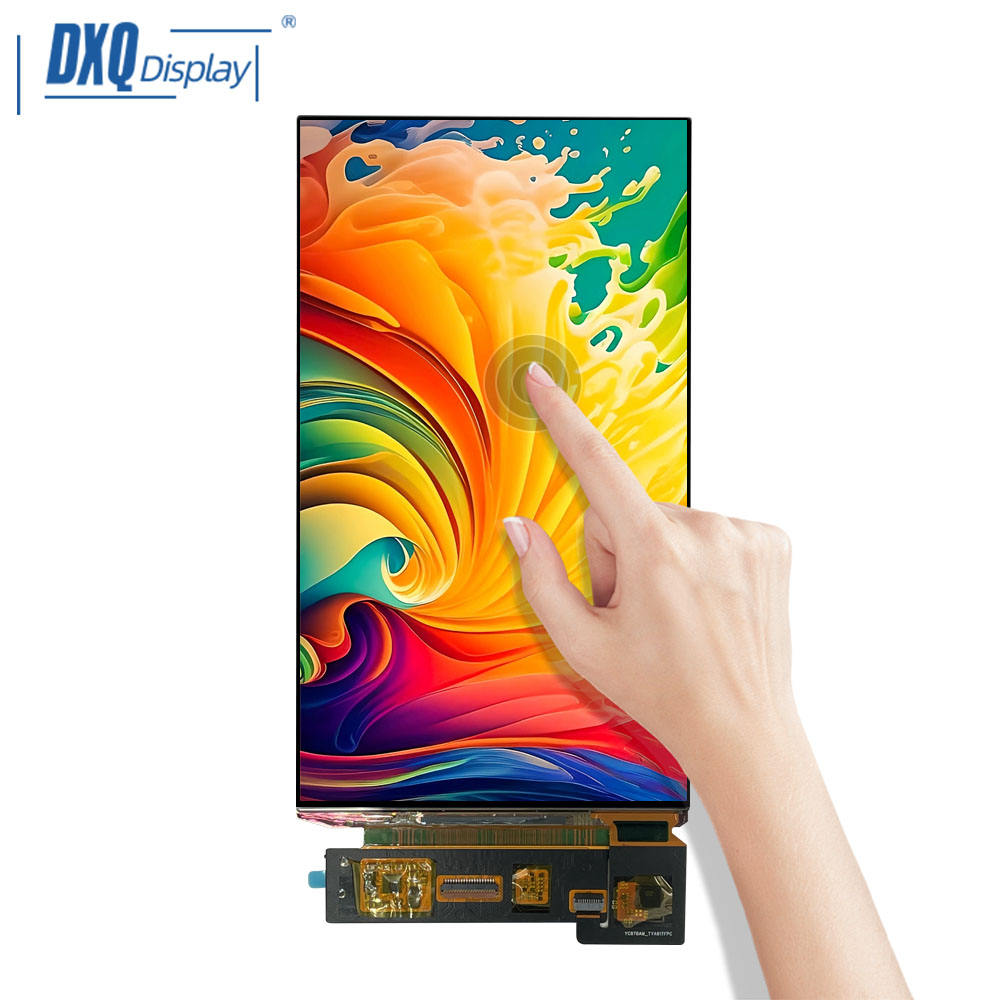

The DXQ7D0023 uses On-Cell capacitive touch technology. Its touch controller is the FT3519, while the display driver is the ICNA3512. In addition, the module uses a Mobile Industry Processor Interface connection and a thirty-nine-pin connector.
This configuration may suit embedded devices with compatible display controllers. However, the host board must support the required signal configuration and pin assignment. Developers should also check touch drivers and software compatibility.
Before integration, request the module’s electrical specifications and interface documentation. Then, test the display with your target board. This process helps identify design adjustments before mass production.
How Do Dimensions and Temperature Ratings Affect Product Design?
Compact devices leave limited room for display installation. Consequently, precise mechanical measurements help prevent enclosure redesigns and assembly delays.
Check Active Area, Outline, and Operating Limits

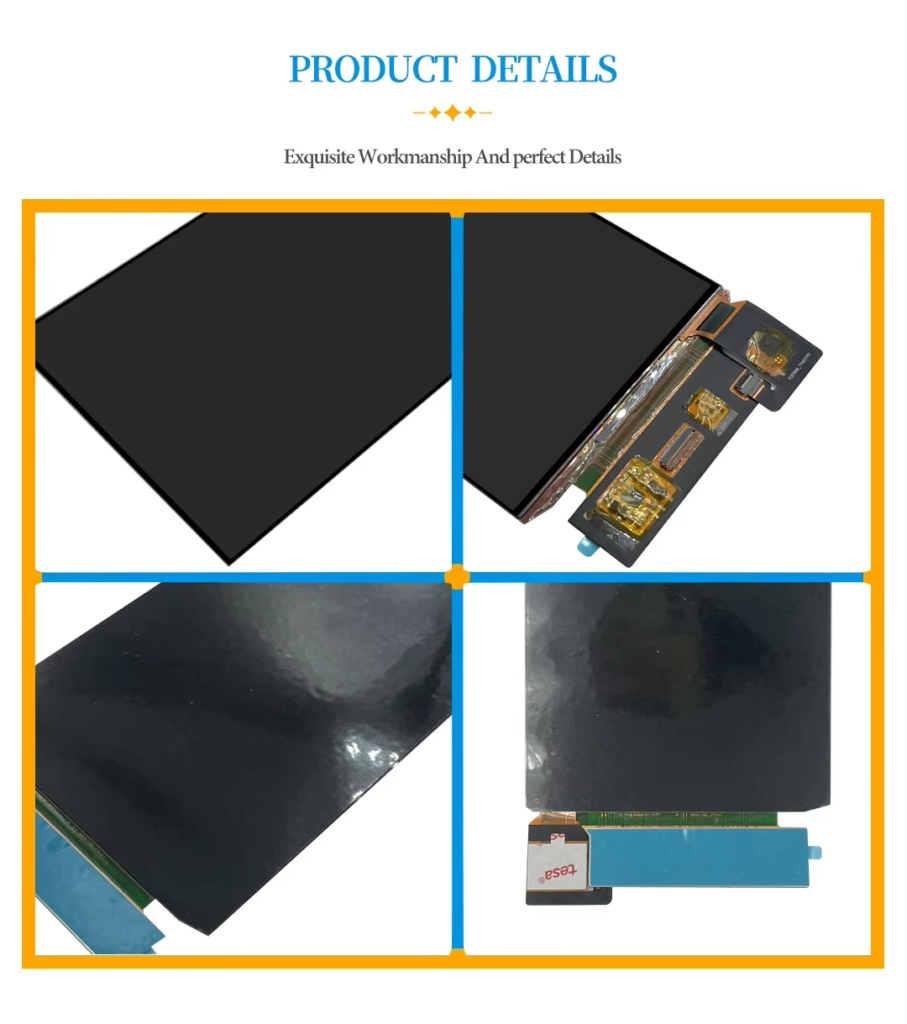

The module’s outline measures approximately 89.13 by 160.91 millimeters. Its active area measures 87.13 by 154.91 millimeters. The panel thickness is approximately 1.095 millimeters.
These dimensions help engineers plan bezel openings and internal clearances. However, the complete assembly also requires space for connectors, cables, and mounting features.
The stated operating temperature ranges from minus twenty to seventy degrees Celsius. Its storage temperature ranges from minus forty to eighty degrees Celsius. Buyers should confirm whether these ratings cover the intended operating conditions and full assembly.
Review our technical guide for additional display integration considerations.
How Can B2B Buyers Balance Quality, Lead Time, and Cost?
For component distributors and equipment manufacturers, procurement planning affects both development schedules and unit economics. Therefore, evaluate samples, production consistency, and supplier support alongside the quoted price.
Compare Specifications Before Placing Bulk Orders
The DXQ7D0023 supports small-quantity evaluation and planned production. Its listed minimum order quantity is two pieces. Sample lead time is seven days, while mass production typically requires twenty-five to thirty days.
The supplier also identifies this module as a private-mold design. This positioning may offer a useful option for buyers seeking differentiated products. Confirm tooling ownership, customization scope, and long-term availability directly with the supplier.
| Evaluation Item | DXQ7D0023 Specification | Buyer Check |
|---|---|---|
| Display size | Seven inches | Confirm enclosure compatibility |
| Resolution | 1080 by 1920 pixels | Match software requirements |
| Refresh rate | Up to 144 hertz | Verify host support |
| Brightness | 800 candelas per square meter | Assess actual lighting conditions |
| Contrast ratio | 100,000 to one | Request measurement details |
| Touch technology | On-Cell capacitive | Confirm touch integration |
| Interface | Mobile Industry Processor Interface | Verify host compatibility |
| Connector | Thirty-nine pins | Request pinout documentation |
| Operating temperature | Minus twenty to seventy degrees Celsius | Check application conditions |
| Minimum order | Two pieces | Confirm current commercial terms |
| Certifications | Not specified | Request applicable documentation |
For quality assurance, request sample inspection and production test procedures. Also, confirm packaging, warranty terms, defect-handling processes, and shipment schedules. These details help procurement teams evaluate overall value more accurately.
Select an AMOLED Module That Fits Your Product Roadmap
Choosing a 7 Inch AMOLED Display requires a balance between visual performance and integration requirements. First, assess resolution, contrast, brightness, and refresh rate. Next, verify touch technology, interface compatibility, and mechanical dimensions. Finally, review sample availability, production lead time, and quality documentation.
For gaming device brands, imaging equipment manufacturers, and embedded system integrators, the DXQ7D0023 offers a defined specification set for evaluation. Contact DXQ to discuss sample testing, customization options, volume pricing, and long-term supply planning.
